Richard Mille occupies peculiar territory in contemporary watchmaking—simultaneously pursuing extreme technical performance and cultivating fashion-forward aesthetics that polarize traditional collectors. The brand built its reputation on barrel-shaped tonneau cases housing movements engineered to Formula 1 tolerances, worn by Rafael Nadal during Grand Slam finals without concern for g-force impact. The rectangular RM 16-02 represents something different: a deliberate departure from signature architecture, prioritizing horizontal expansion over volumetric stacking, pursuing flatness as technical achievement rather than bulk as structural necessity. Introduced in early 2025, the 16-02 reimagines the original RM 016 from 2007—Richard Mille's first rectangular watch—through the lens of Brutalist design principles and the newly developed Caliber CRMA9 automatic movement.
This marks the fifteenth in-house caliber from Richard Mille's Geneva manufacture, designed specifically for the 16-02's architectural constraints. Where most Richard Mille movements prioritize shock resistance and power density through three-dimensional construction, the CRMA9 spreads horizontally across the rectangular plane, maximizing visual transparency through 67 individually chamfered openings that require nearly two hours of milling per baseplate. The titanium version represents the foundational expression—grade 5 titanium case and movement components finished with electroplasma treatment and microblasting, creating matte grey surfaces that absorb light rather than reflect it. A terracotta Quartz TPT variant exists alongside the titanium model, employing Richard Mille's layered composite material, but the titanium version maintains purer focus on metal craftsmanship and structural honesty.

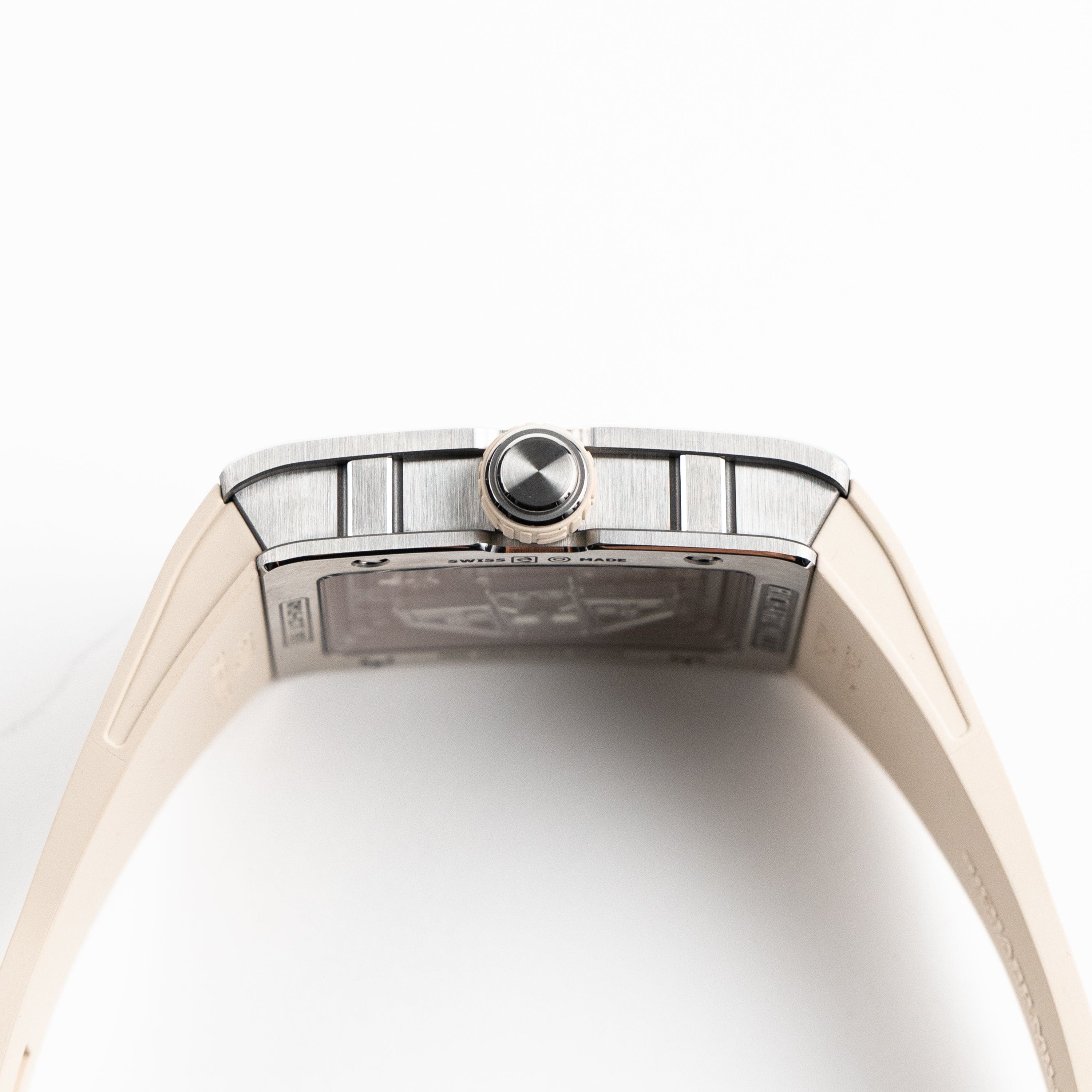

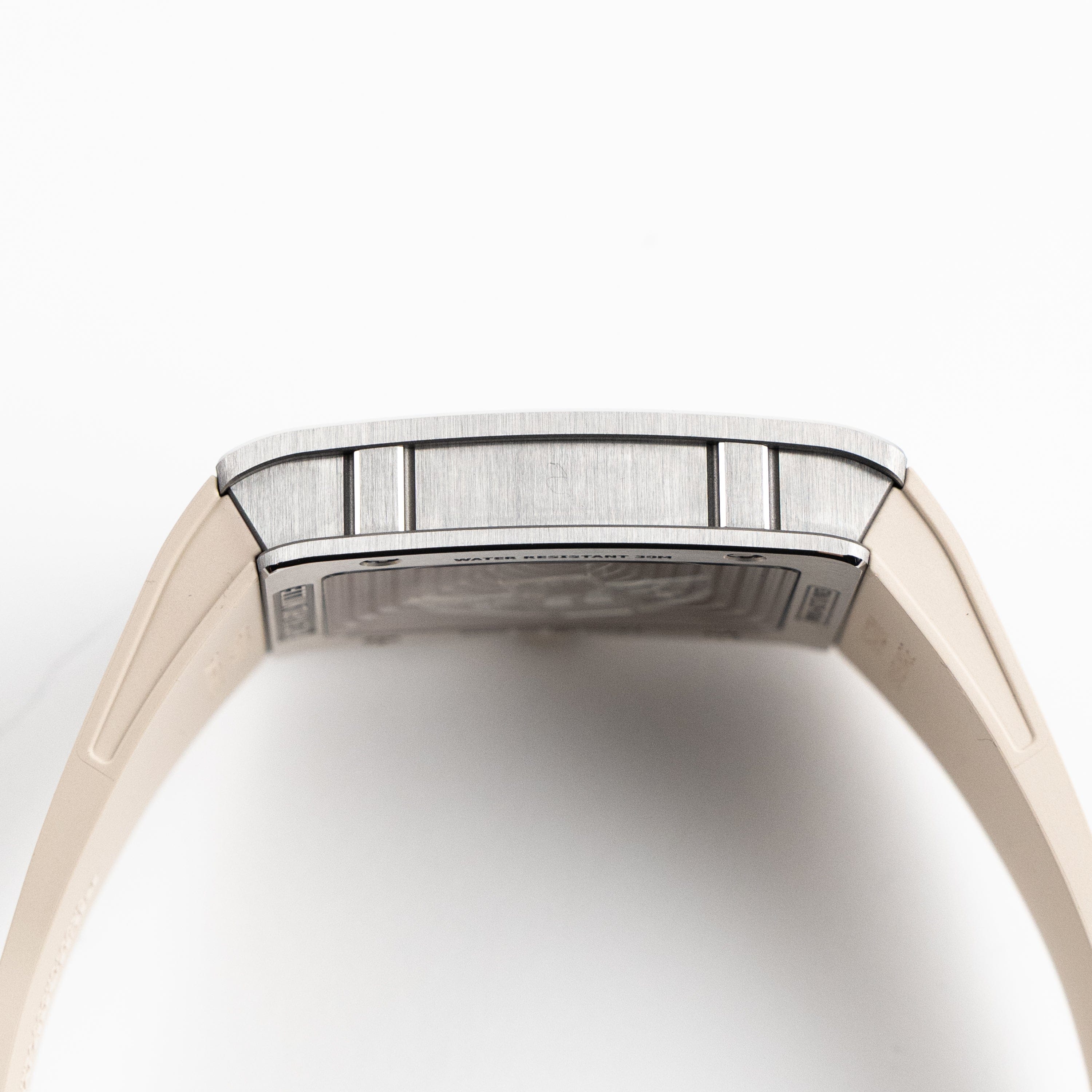

The 16-02 measures 36mm wide, 45.64mm lug-to-lug, and crucially just 9.5mm thick—representing a 10% reduction in overall footprint compared to the original RM 016. Richard Mille achieved this compression through holistic redesign: the movement mounts directly to the case via chassis rubbers (ISO SW standard) secured by titanium screws, eliminating the traditional casing ring that adds vertical height. The tripartite case construction—bezel, caseband, caseback—requires 12 grade 5 titanium spline screws with abrasion-resistant 316L stainless steel washers. Water resistance extends to 30 meters via three Nitrile O-ring seals, sufficient for daily wear but acknowledging this isn't a tool watch designed for aquatic environments.
The case finishing alternates between microblasted satin surfaces on flat planes and polished bevels along edges, creating subtle interplay between matte and reflective zones. Grade 5 titanium (Ti-6Al-4V alloy: 90% titanium, 6% aluminum, 4% vanadium) offers specific material advantages—biocompatible, corrosion-resistant, approximately 45% lighter than stainless steel, and rigid enough to maintain structural integrity despite aggressive skeletonization. The alloy's stiffness allows thinner walls without flexing, crucial for maintaining movement stability in an ultra-thin package.

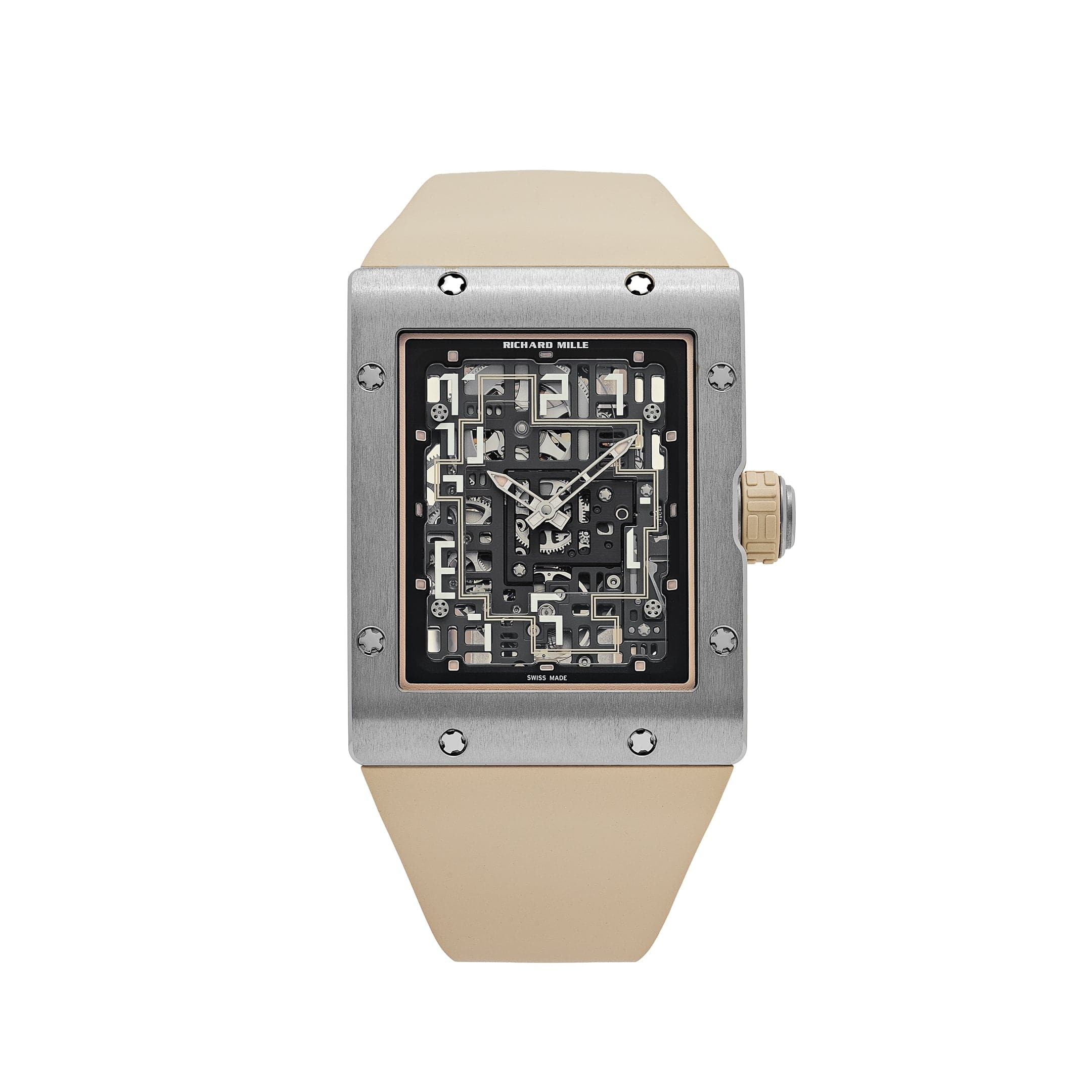

The rectangular silhouette echoes architectural minimalism—no decorative flourishes, no bezels interrupting clean lines, just geometric purity expressed through right angles and proportional relationships. Richard Mille explicitly references Brutalism in marketing materials: the mid-century architectural movement that celebrated raw concrete, exposed structural elements, and honesty of materials. The 16-02 translates these principles to wristwatch scale through visible titanium baseplate covering the entire dial surface, exposed spline screws penetrating the bezel, and movement architecture functioning as aesthetic element rather than hidden mechanism.
The movement dominates visual experience—no traditional dial exists, just a skeletonized baseplate in microblasted grade 5 titanium receiving grey electroplasma coating. Electroplasma treatment (also called Titalyt when Richard Mille introduced it on the RM 016 in 2009) uses high-voltage electrical discharge to oxidize titanium's surface, creating a hardened ceramic layer approximately 20 microns deep. This process increases surface hardness to roughly 1,500 Vickers, dramatically improving scratch and wear resistance while maintaining biocompatibility. The treatment also yields distinctive grey coloration—darker and more uniform than raw titanium's silvery sheen.

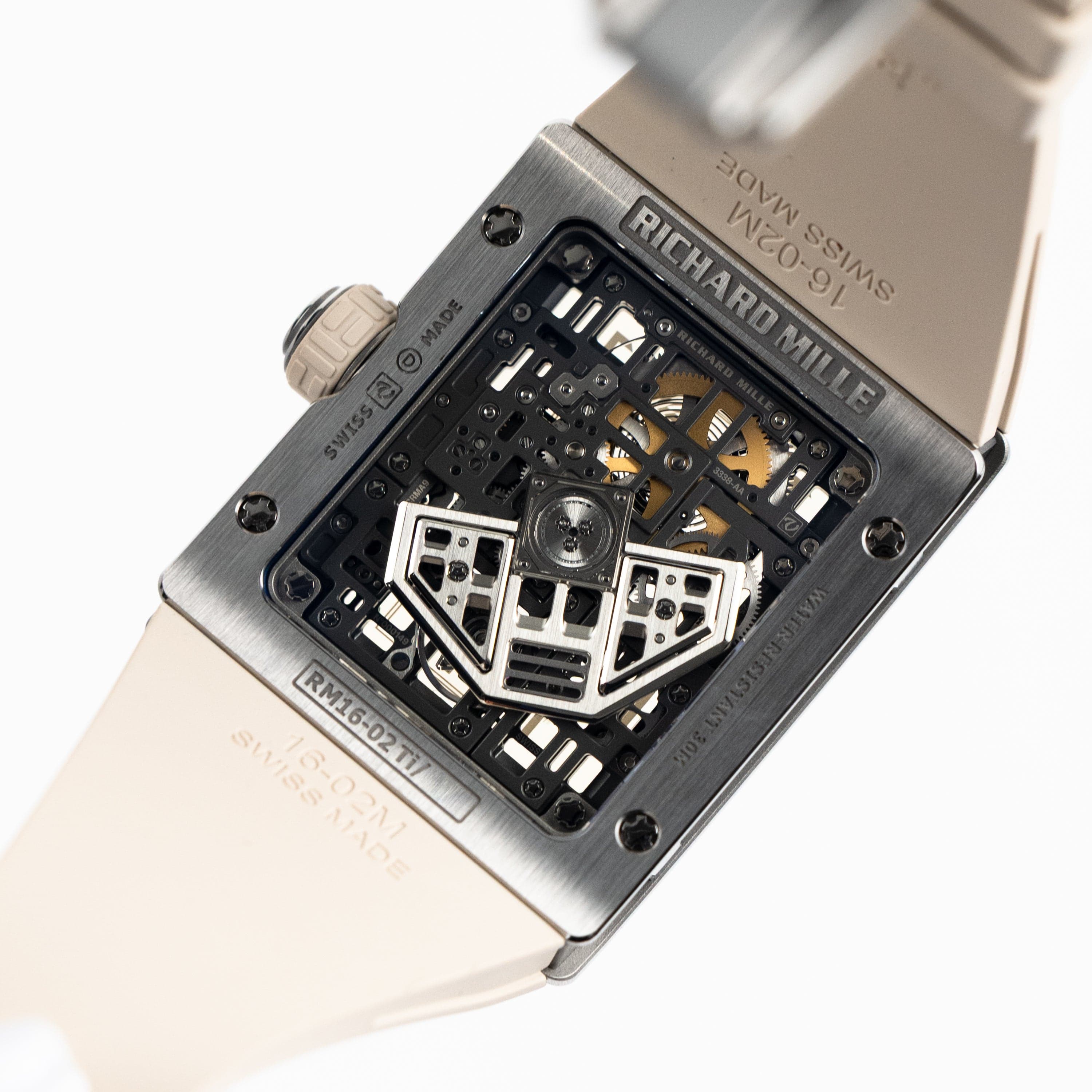

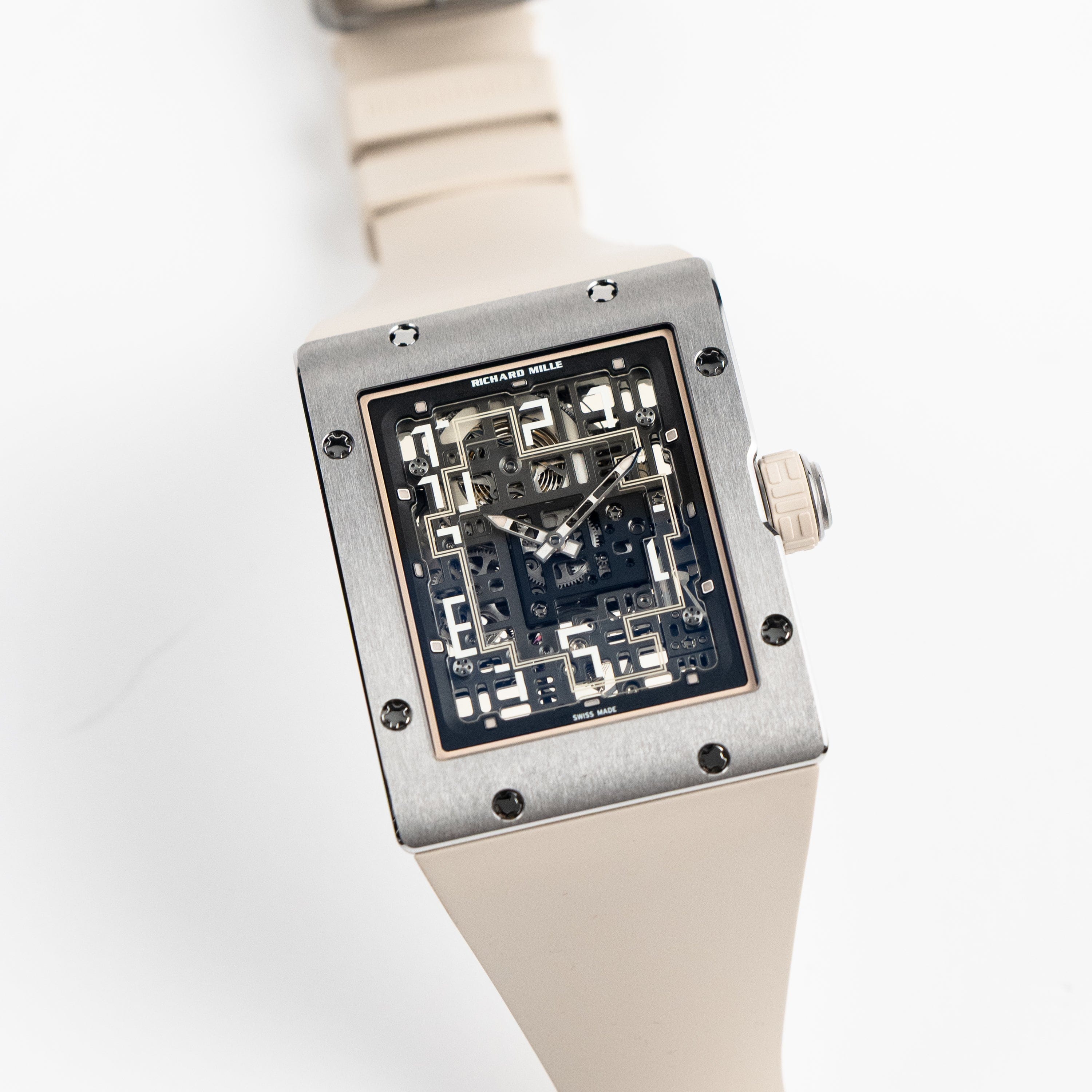

Only the motion-work bridge (carrying the minute wheel train) receives contrasting treatment: black PVD coating that distinguishes it visually from the surrounding grey baseplate. On the display caseback, microblasted grade 5 titanium bridges maintain the grey electroplasma finish, creating monochromatic coherence across both sides. The extreme skeletonization—67 openings of varying geometries, each with hand-chamfered edges—transforms the movement into architectural framework rather than solid mass. Light penetrates through apertures, creating depth and shadow play that shifts with wrist angle.
The bidirectional automatic rotor employs unconventional geometry: angular rather than semicircular, constructed from platinum weighted with grade 5 titanium segments. Platinum provides density for efficient winding inertia; titanium reduces overall mass. The rotor mounts on ceramic ball bearings, minimizing friction during rotation. Operating at 28,800 vibrations per hour (4 Hz), the movement delivers approximately 50 hours of power reserve through a fast-rotating barrel completing full cycles every five hours rather than the traditional 7.5 hours. This accelerated rotation reduces mainspring stress, theoretically improving long-term durability and torque consistency.
The balance wheel features four adjustable weights for precision regulation—free-sprung architecture eliminates index regulators, allowing rate adjustment through inertia modification rather than hairspring length changes. Richard Mille subjects every CRMA9 to 10-year aging tests and shock-resistance protocols despite the extra-flat architecture. The movement's horizontal spread measures approximately 30mm x 28mm with 4.12mm thickness—barely thicker than traditional manual-wind dress movements, remarkable for an automatic caliber housing rotor, gear train, and skeletonized construction.

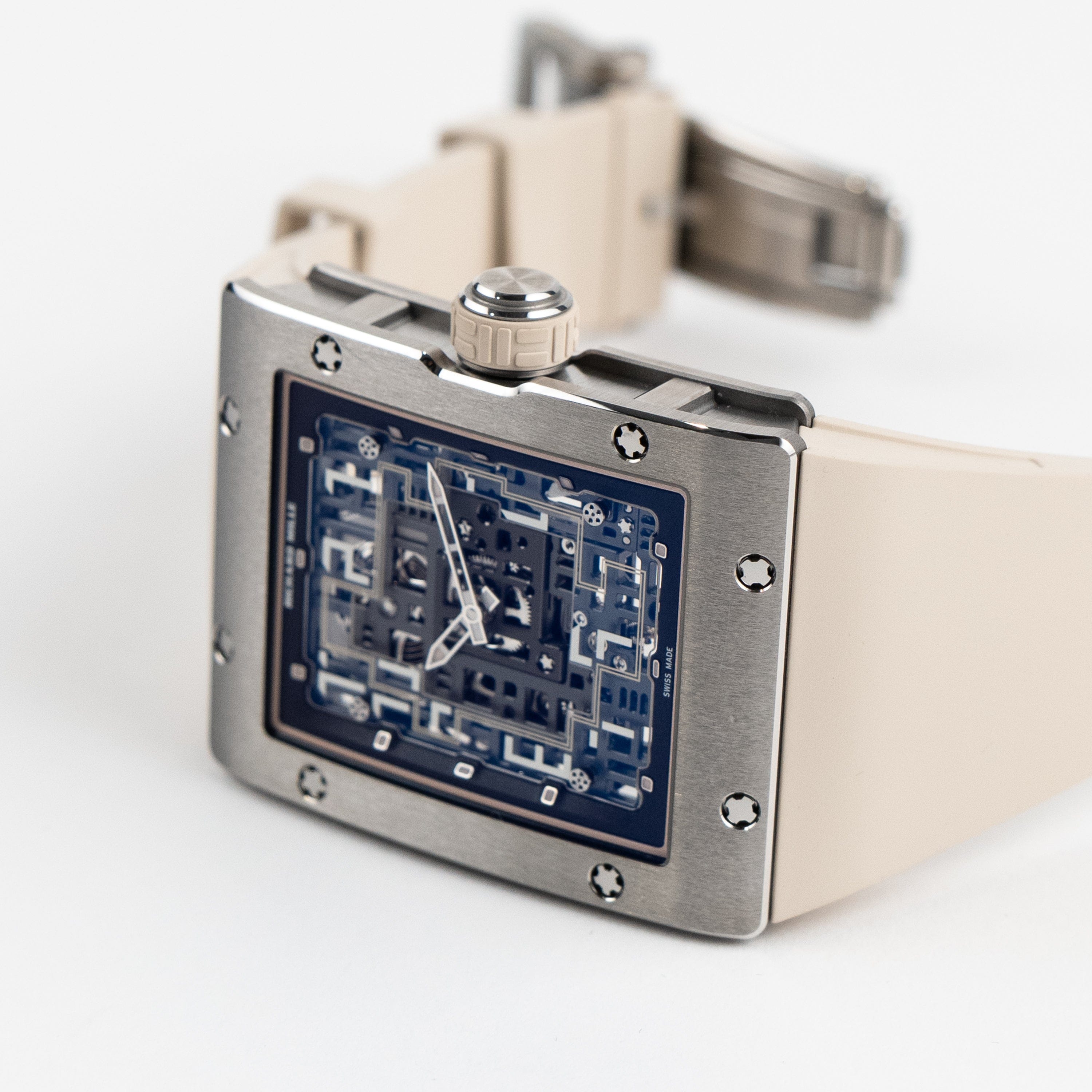

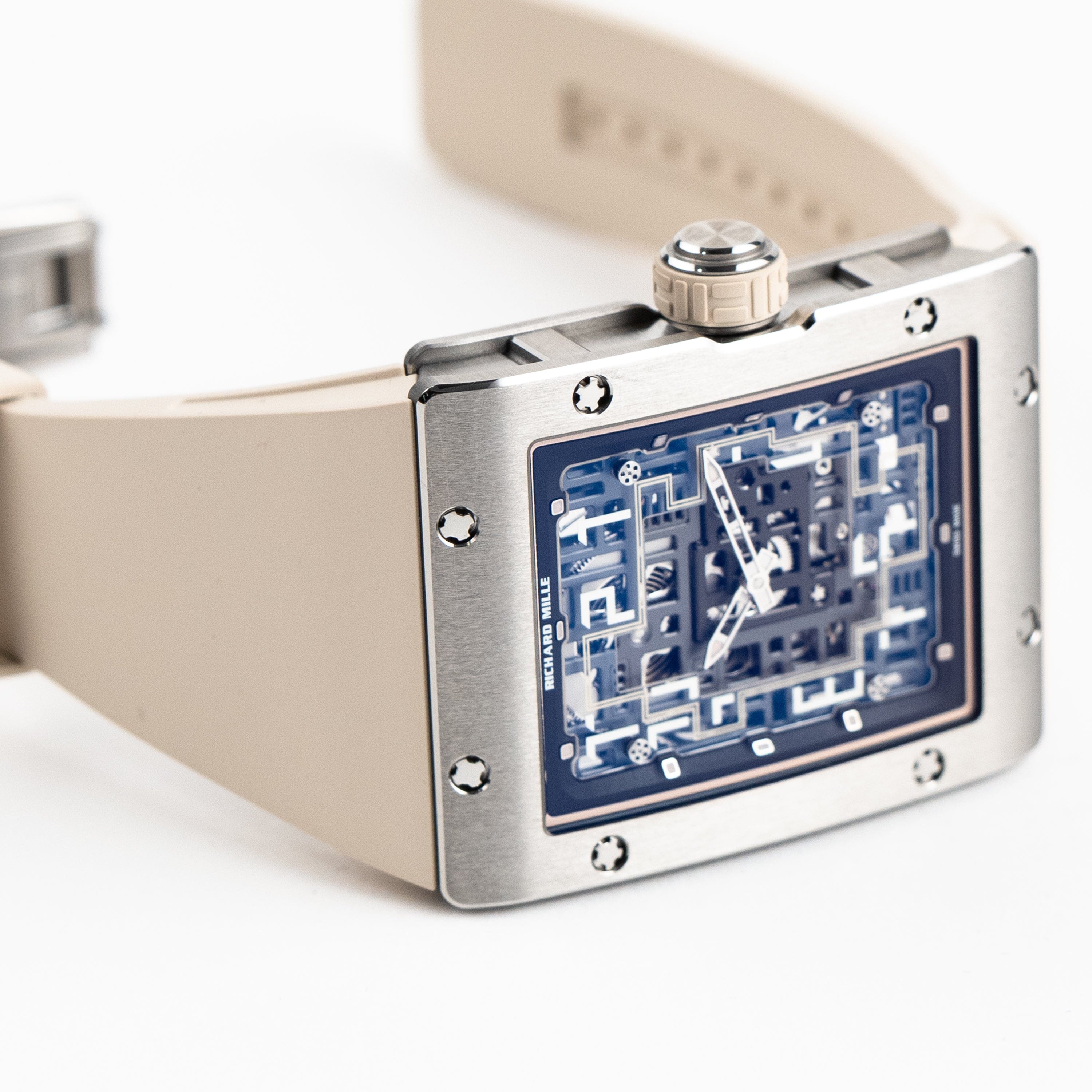

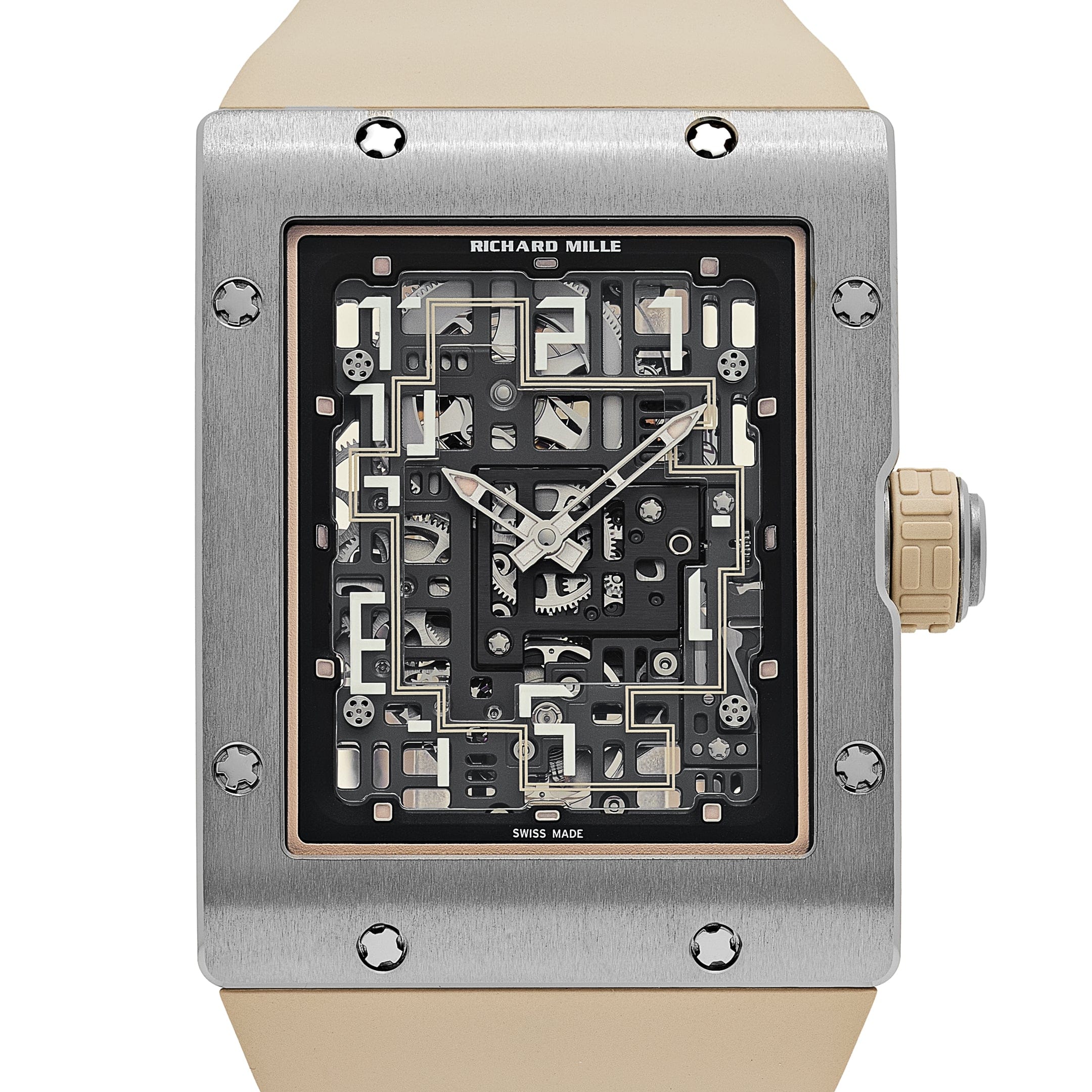

The dial treatment employs sapphire crystal with printed indices following what Richard Mille describes as "wire decal resembling Ariadne's thread"—reference to Greek mythology's labyrinth navigation. Hour markers trace paths through the skeletonized movement's apertures, creating visual maze that guides the eye through mechanical complexity. No date complication appears—the 16-02 eliminates the date window present on the original RM 016, prioritizing visual purity over practical functionality. Just hours and minutes, displayed via skeletonized hands in polished titanium.
The original RM 016 debuted in 2007 as Richard Mille's first rectangular watch, employing Caliber RMAS7 with variable-geometry rotor—a Richard Mille exclusive allowing owners to adjust rotor inertia through six-position weight positioning, optimizing winding efficiency for sedentary versus athletic lifestyles. The RMAS7 included date complication via window at 7 o'clock, operating at 4 Hz with approximately 55-hour power reserve. Case dimensions measured larger: 38mm x 49.8mm with comparable 9mm-range thickness.
