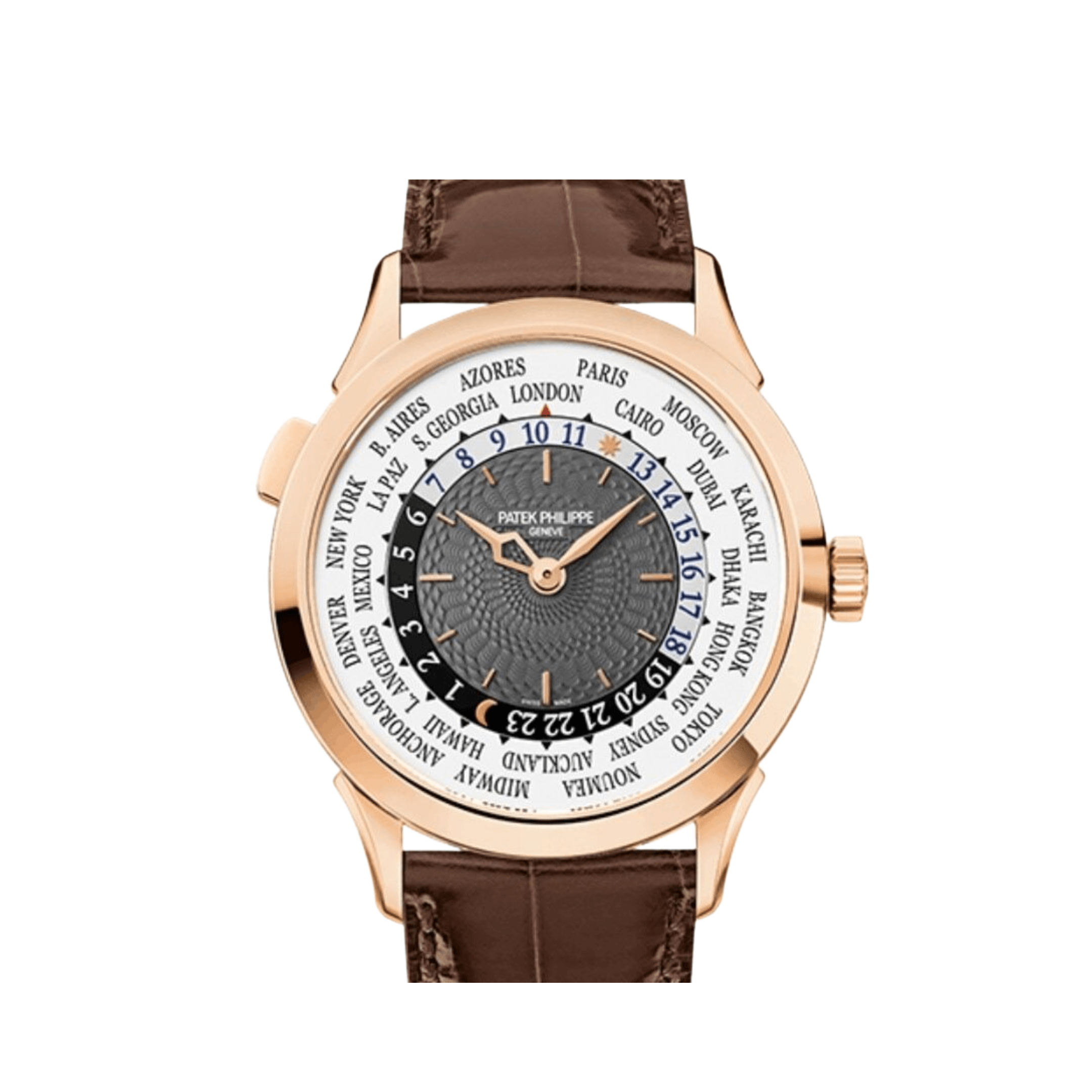

The Patek Philippe Complications World Time Reference 5230R-001 represents brand's modern interpretation of Louis Cottier's pioneering world time mechanism introduced 1930s enabling simultaneous display of time across 24 global time zones. Introduced BaselWorld 2016 as refined successor to previous world time references, 5230R features reduced 38.5mm diameter creating elegant proportions closer to historical models while maintaining complete functionality. The 18K rose gold case measures 38.5mm diameter x 10.23mm thickness demonstrating ultra-thin construction despite housing complex world time mechanism, slim profile achieved through Caliber 240 HU's off-center micro-rotor architecture. Charcoal gray lacquered dial center features hand-guilloche basketweave pattern creating three-dimensional texture, rose gold applied baton hour markers creating refined time indication. Concentric rings display world time complications: inner 24-hour ring divided into day (lighter) night (darker) sections with gold sun emblem at 12 o'clock crescent moon at 24 creating AM/PM differentiation, outer white ring displays 24 world cities representing each time zone. Pusher at 10 o'clock advances hour hand plus city/24-hour rings simultaneously enabling intuitive time zone changes without affecting minute hand or timekeeping precision. Distinctive hour hand employs skeletonized design shaped like Southern Cross constellation creating visual interest while maintaining legibility. Powered by Caliber 240 HU automatic movement featuring 22-karat gold off-center micro-rotor enabling slim 3.88mm movement height, movement comprises 239 components including 33 jewels oscillating 21,600 vibrations per hour delivering minimum 48-hour power reserve. Patek Philippe Seal certification ensures -3/+2 seconds daily accuracy plus traditional Geneva finishing. Sapphire exhibition caseback reveals movement architecture. Brown alligator leather strap features square scales with 18K rose gold fold-over deployment clasp. Water resistance 30 meters suitable splash resistance though positioned as dress complications watch. Reference discontinued creating collector interest replacing Hong Kong with Beijing on city ring in subsequent 5230R-012 variant.
The 38.5mm case fabricates entirely from 18K rose gold employing Calatrava-style three-piece construction. Round case features polished surfaces throughout creating luxurious reflections, smooth polished bezel creating clean uninterrupted frame for dial. Case middle features curved faceted lugs integrating seamlessly creating flowing profile, lugs drilled enabling easy strap changes. Rectangular pusher positions at 10 o'clock flush-mounted into case enabling city/time zone advancement: pushing advances hour hand one hour forward simultaneously rotating city ring 24-hour ring counterclockwise one position creating intuitive interface. Crown positions at 3 o'clock fabricating from rose gold featuring polished surfaces, crown operates winding time-setting functions via pull positions. Sapphire crystal protects dial employing curved profile. Sapphire exhibition caseback reveals Caliber 240 HU secured via screws, caseback features beveled edge creating refined profile. Case provides 30 meters water resistance suitable daily wear though World Time positioned as dress complications piece.
The charcoal gray lacquered dial creates sophisticated background for world time complications. Dial center features hand-guilloche basketweave pattern: guillochage engine-turned creating concentric geometric texture, lacquer layers applied over guillochage creating depth dimensional character. Applied hour markers fabricate from 18K rose gold employing polished baton shapes positioned at 1-2-4-5-7-8-10-11 o'clock creating refined indication. "PATEK PHILIPPE" signature appears at dial top, "GENÈVE" smaller beneath. Concentric 24-hour ring positions dial periphery featuring numerals 1-24 printed: ring divided into day section (lighter background) night section (darker background) creating instant AM/PM recognition, gold sun emblem positions at 12 o'clock gold crescent moon at 24 o'clock. Red triangle indicator positions between dial center and 24-hour ring pointing to current hour in selected time zone. Outer white ring displays 24 world cities representing major time zones: cities printed black uppercase creating clear legibility, ring rotates in conjunction with hour hand when pusher operates. Cities include major centers like Paris London Dubai Hong Kong (original 5230R-001 replaced by Beijing in later -012 variant). Central hands fabricate from 18K rose gold: hour hand features skeletonized design shaped like Southern Cross constellation with four stars creating distinctive appearance while enabling visibility of 24-hour ring beneath, minute hand employs dauphine shape with lapped flanks, hands receive rose gold luminescent coating.
Caliber 240 HU automatic movement represents Patek Philippe manufacture development for world time complications. Base Caliber 240 introduced 1977 establishing ultra-thin automatic architecture measuring 3.88mm height, "HU" designation indicates "Heure Universelle" (Universal Time). Movement comprises 239 components including 33 jewels demonstrating mechanical complexity required for world time mechanism. Oscillating 21,600 vibrations per hour (3 Hz) providing reliable chronometric performance. Power reserve delivers minimum 48 hours when fully wound. Off-center micro-rotor fabricates from 22-karat yellow gold providing bidirectional automatic winding: rotor positions at movement periphery rather than center enabling ultra-thin construction, rotor features segment shape engraved with Calatrava cross. World time mechanism employs Louis Cottier's ingenious system: 24-hour disc city ring mechanically linked rotating together when pusher operated, hour hand jumps forward one hour via instantaneous mechanism, minute hand unaffected enabling continuous timekeeping precision. Pusher at 10 o'clock operates cam system advancing complications. Movement employs Gyromax balance: free-sprung balance features adjustable weights positioned balance rim enabling regulation adjusted to heat cold isochronism five positions. Spiromax hairspring fabricates from Silinvar creating paramagnetic properties temperature stability. Movement finishing employs traditional Geneva haute horlogerie: Côtes de Genève striping on bridges, anglage on edges, circular graining (perlage) on mainplate, polished beveled edges, gold-filled engravings. Movement receives Patek Philippe Seal certification ensuring -3/+2 seconds daily accuracy exceeding COSC standards plus hand-finishing quality permanent assembly standards.
The brown alligator leather strap fabricates from genuine alligator featuring square scale pattern. Strap features hand-stitching securing edges. 18K rose gold fold-over deployment clasp operates via double-folding mechanism featuring Patek Philippe logo engraving, clasp polished creating mirror-like surfaces.
The World Time 5230R-001 distinguishes through 18K rose gold case 38.5mm diameter 10.23mm thickness, charcoal gray lacquered dial with hand-guilloche basketweave center, applied 18K rose gold baton hour markers, skeletonized Southern Cross hour hand, 24-hour day/night ring with gold sun moon emblems, outer white city ring displaying 24 world cities, pusher at 10 o'clock advancing time zones, Caliber 240 HU automatic movement 239 components 33 jewels, 21,600 vph minimum 48-hour power reserve, 22-karat gold off-center micro-rotor, Gyromax balance Spiromax silicon hairspring, traditional Geneva finishing, Patek Philippe Seal certification -3/+2 seconds daily accuracy, sapphire crystal sapphire exhibition caseback, 30 meters water resistance, brown alligator strap square scales rose gold fold-over clasp. The reference represents Patek Philippe achievement creating refined world time complication within elegant proportions, Louis Cottier mechanism enabling intuitive global timekeeping, introduced BaselWorld 2016 establishing 38.5mm sizing returning to historical proportions, Caliber 240 HU micro-rotor enabling ultra-thin case profile, discontinued variant with Hong Kong city creating collector interest, exemplifying synthesis technical sophistication with classical elegance within brand's Complications collection celebrating travel complications heritage established 1930s.
