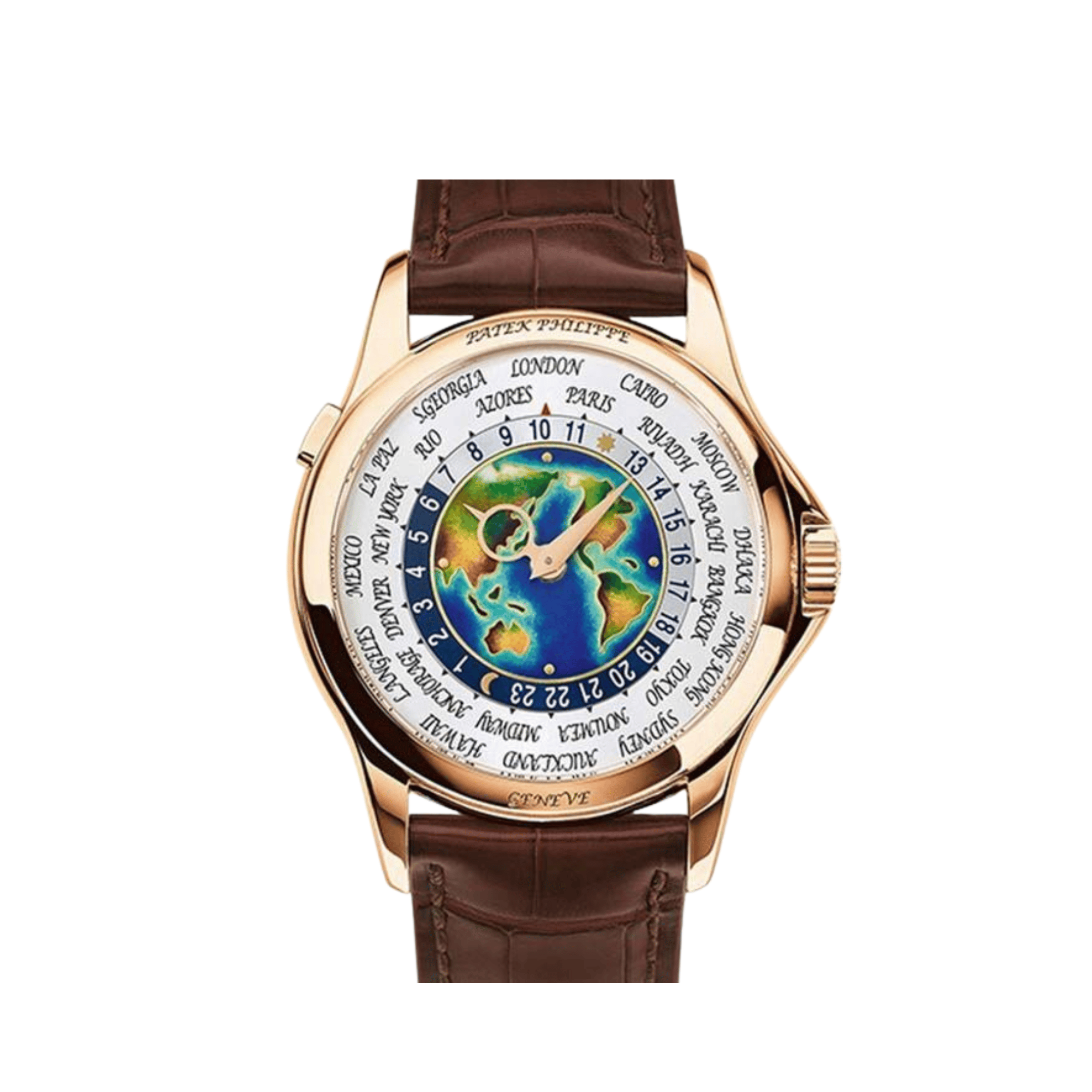

The Patek Philippe Complications Reference 5131R-001 represents extraordinary synthesis of haute horlogerie and rare handcrafts celebrating world time complication through hand-made Grand Feu cloisonné enamel dial depicting four continents. Reference 5131 launched 2008 combines features of two Patek Philippe models: case and movement of world time Reference 5130 with cloisonné enamel dial reminiscent of vintage Reference 2523. Originally introduced yellow gold, manufacture released white gold 2009, rose gold 2014, platinum 2017. The 5131R-001 rose gold version launched Baselworld 2015 featuring enamel map centered on Americas creating vibrant depiction of Earth's continents rendered through laborious enamelling requiring multiple firings exceeding 800°C. Due to exceptionally labor-intensive cloisonné process, Patek Philippe produces very limited quantities annually, only couple master enamellers producing fewer than 40 dials yearly. Each dial individually enamelled by hand resulting in no two identical, slight variations creating unique character. Approximately 150-200 examples of Reference 5131R produced total. Unlike successor Reference 5231, the 5131 features Patek Philippe signature engraved on bezel allowing unobstructed enamel view. The 39.5mm rose gold case houses ultra-thin Caliber 240 HU automatic movement displaying all 24 time zones simultaneously with day/night indication, city selection via pusher at 10 o'clock.
The 39.5mm diameter case fabricates entirely from 18ct rose gold (750/1000 purity). Round case measures 39.5mm diameter x 10mm height achieving balanced proportions. Case employs polished finishing throughout creating lustrous surfaces. Domed rose gold bezel features "Patek Philippe Genève" signature engraved into surface, engraving positioning on bezel distinguishing 5131 from successor 5231 allowing complete enamel dial visibility. Screw-down crown positions at 3 o'clock featuring fluted pattern. Pusher at 10 o'clock enables city/time zone selection operating world time mechanism. Sapphire crystal protects dial employing anti-reflective coating. Sapphire exhibition caseback reveals Caliber 240 HU movement showcasing Geneva finishing including Côtes de Genève circular graining and polished bevels. Case provides 30 meters water resistance suitable for splash resistance.
The dial represents extraordinary achievement in rare handcrafts featuring hand-made Grand Feu cloisonné enamel center depicting Earth's continents. Cloisonné technique involves creating fine gold wire partitions (cloisons in French) soldered onto 18-carat gold dial plate forming compartments filled with powdered enamel of different colors, dial then fired in kiln at temperatures exceeding 800°C causing enamel to vitrify and fuse creating permanent brilliant colors. Process requires multiple firings as different enamel colors vitrify at different temperatures, master enameller applying successive layers building depth and color intensity. The 5131R-001 enamel map centers on Americas showing North and South America in green and ochre tones, Atlantic Ocean in blue, portions of Europe and Africa visible on edges, each continent rendered with geographical detail showing major landmasses coastlines. Enamel work displays characteristic depth and luminosity of Grand Feu technique, colors appearing translucent with subtle variations in tone creating realistic depiction of Earth's surface. Gold wire cloisons visible between color fields creating delicate outlines defining continental boundaries and ocean areas. Surrounding enamel center, silvered rotating ring displays 24 city names representing each time zone: London Paris Rome Cairo Dubai Karachi Delhi Hong Kong Tokyo Sydney Noumea and others, city ring fabricated from silver with applied lettering creating clear legibility. Beyond city ring, 24-hour disc rotates displaying hours 1 through 24 with day/night indication, daytime hours (6-18) rendered in lighter tone while nighttime hours (19-5) appear darker creating visual differentiation between diurnal and nocturnal periods. Outer chapter ring features minute track with five-minute divisions. Rose gold circle-shaped hour hand and lozenge-shaped minute hand provide time reading, hands' distinctive shapes characteristic of Patek Philippe world time models ensuring clear differentiation. Small seconds subdial positions at 6 o'clock featuring simple seconds hand. The dial's construction creates multi-layered three-dimensional effect: enamel center at lowest level, rotating city ring at intermediate level, rotating 24-hour disc at upper level, hands above all creating complex yet legible display. Each enamel dial requires approximately 200 hours master craftsman work from initial wire placement through multiple enamel applications and successive firings, labor-intensive process explaining limited annual production. Slight variations in enamel color placement firing results and tonal gradations ensure no two dials identical, each 5131R-001 possessing unique character within overall design framework.
Caliber 240 HU automatic movement represents Patek Philippe's ultra-thin architecture incorporating world time complication module. Movement measures 30mm diameter x 3.88mm thickness demonstrating extraordinary slim profile achieved through off-center micro-rotor design rather than traditional full-size rotor. Caliber composed of 239 components including 33 jewels demonstrating mechanical complexity required for world time function within constrained vertical space. Oscillating at 21,600 vibrations per hour (3 Hz) providing traditional Swiss beat rate ensuring reliable chronometric performance. Off-center 22-carat gold micro-rotor provides bidirectional automatic winding, rotor integrated into movement rather than positioned above dial-side components enabling reduced thickness, rotor featuring semicircular shape with guilloche decoration visible through exhibition caseback. Power reserve provides minimum 48 hours running time when fully wound enabling watch to continue operating through weekend when removed Friday evening. Gyromax balance wheel features Patek's proprietary design with adjustable weights positioned on rim enabling precise rate regulation without index regulator, free-sprung design enhancing chronometric stability and shock resistance. Spiromax balance spring fabricates from Silinvar silicon offering paramagnetic properties ensuring movement unaffected by magnetic fields, silicon hairspring also demonstrating superior temperature stability and resistance to shocks. World time mechanism operates via articulated arm connecting to single pusher at 10 o'clock, pressing pusher advances rotating city ring and 24-hour disc by one time zone (one hour) while leaving hour hand stationary, mechanism providing instant time zone changes without stopping watch or disturbing minute/second progression. 24-hour disc rotates once per day synchronized with Earth's rotation, day/night indication automatically updating as disc rotates providing immediate visual reference for whether selected city experiencing daytime or nighttime hours. Movement finishing meets Patek Philippe Seal standards including Côtes de Genève on bridges circular graining on plates polished bevels and polished screw heads, finishing visible through sapphire exhibition caseback. Caliber 240 introduced 1977 representing Patek's current ultra-thin automatic architecture, HU designation indicating "Heure Universelle" (Universal Time in French) specifying world time complication module. The movement synthesis ultra-thin construction with world time complexity demonstrates Patek Philippe's technical mastery creating functional artistic timepiece within refined dress watch proportions.
The hand-stitched brown alligator leather strap features large square scales creating distinctive texture complementing dial's artisanal character. Alligator leather selected for supple quality and luxurious appearance, brown coloration providing warm tone harmonizing with rose gold case. Hand-stitching demonstrates traditional leather craftsmanship ensuring durability while maintaining elegant appearance, stitching visible along strap edges. Rose gold deployant fold-over clasp fabricates from 18ct rose gold featuring Patek Philippe engraving, deployant mechanism enabling secure closure while protecting strap from excessive wear at buckle attachment points. Clasp employs fold-over design concealing deployment mechanism when closed creating streamlined appearance.
The Complications 5131R-001 distinguishes through 18ct rose gold construction creating warm luxurious aesthetic, 39.5mm x 10mm dimensions providing balanced dress watch proportions, hand-made Grand Feu cloisonné enamel dial center depicting Americas Asia Africa and Oceania requiring approximately 200 hours master craftsman work, each dial unique due to handcrafted enamelling process, fine gold wire cloisons creating compartments filled with vitrified enamel, multiple firings exceeding 800°C, silvered rotating city ring displaying 24 cities representing each time zone, rotating 24-hour disc with day/night indication, rose gold circle-shaped hour hand and lozenge-shaped minute hand, small seconds at 6 o'clock, Caliber 240 HU automatic 30mm x 3.88mm ultra-thin architecture, 239 components 33 jewels 21,600 vph, 48-hour power reserve, off-center 22-carat gold micro-rotor bidirectional winding, Gyromax balance wheel Spiromax silicon balance spring, pusher at 10 o'clock for city/time zone selection, world time mechanism displaying all 24 time zones simultaneously, sapphire crystal with anti-reflective coating, sapphire exhibition caseback revealing movement finishing, 30 meters water resistance, Patek Philippe Seal certification, brown hand-stitched alligator leather strap, rose gold deployant fold-over clasp, launched Baselworld 2015, limited production approximately 150-200 total examples due to labor-intensive enamel dial creation, fewer than 40 enamel dials produced annually by couple master enameller artists. The reference exemplifies Patek Philippe's commitment preserving traditional rare handcrafts within contemporary watchmaking, cloisonné enamel technique requiring exceptional skill patience and artistic sensitivity, world time complication providing practical functionality displaying all 24 time zones with day/night indication operated via single pusher, combination of technical horological complexity and artisanal dial craftsmanship creating timepiece valued both for mechanical sophistication and artistic execution, representing synthesis of Patek Philippe's dual heritage as technical innovator and guardian of traditional métiers d'art within Swiss haute horlogerie tradition.
