The Nautilus arrived in 1976 as calculated provocation—Patek Philippe, bastion of conservative haute horlogerie since 1839, entering the stainless steel luxury sports watch market four years after Audemars Piguet's Royal Oak validated the category's commercial viability. Both watches shared DNA: Gérald Genta designed both, drawing the Nautilus in five minutes on a restaurant napkin while dining meters from Patek executives; both employed porthole-inspired octagonal bezels (the Royal Oak referenced dive helmets, the Nautilus echoed transatlantic ocean liner portholes); both used Jaeger-LeCoultre's ultra-thin Caliber 920 ébauche as mechanical foundation. The Nautilus 3700 launched with aggressive 42mm case diameter (Measuring 42mm across the widest point (including the “ears”)) earning immediate "Jumbo" designation, identical dimensions to the Royal Oak 5402 despite collector mythology insisting both wore smaller than measurements suggested.
The reference 3700/11 represents the second production iteration (1980-1990), distinguished from the original 3700/1 (1976-1980) through manufacturing consolidation: Patek brought case production in-house to Ateliers Réunis workshop, modified the steel alloy composition, and redesigned the bracelet to taper from 16mm at case attachment to 14mm at clasp versus the 3700/1's straight 16mm bracelet terminating in 18mm clasp—subtle refinements invisible to casual observation but critical to collectors establishing provenance and production periods.
The black dial variant represents the rarest Nautilus 3700 configuration. Patek offered the original Jumbo in multiple dial executions—the iconic blue horizontally-ridged dial dominates collector consciousness and secondary market availability, appearing on perhaps 80-85% of production; white/cream dials account for roughly 10-15%; black dials comprise perhaps 3-5% of total 3700 series production across both the 3700/1 and 3700/11 iterations. Total production estimates for all stainless steel 3700 references combined range from 3,000-4,000 pieces across the 14-year production run (1976-1990), suggesting perhaps 100-200 black dial examples exist globally.

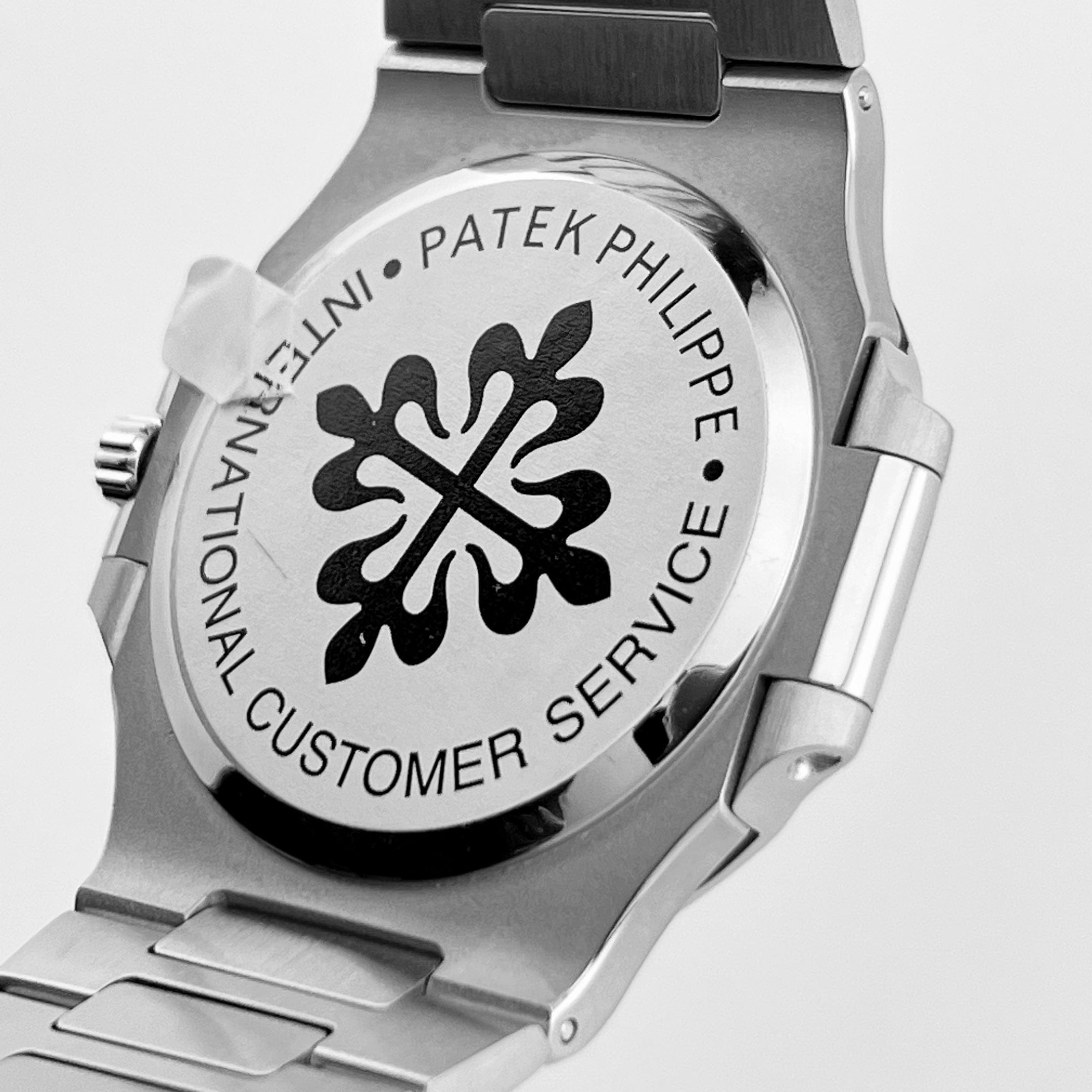

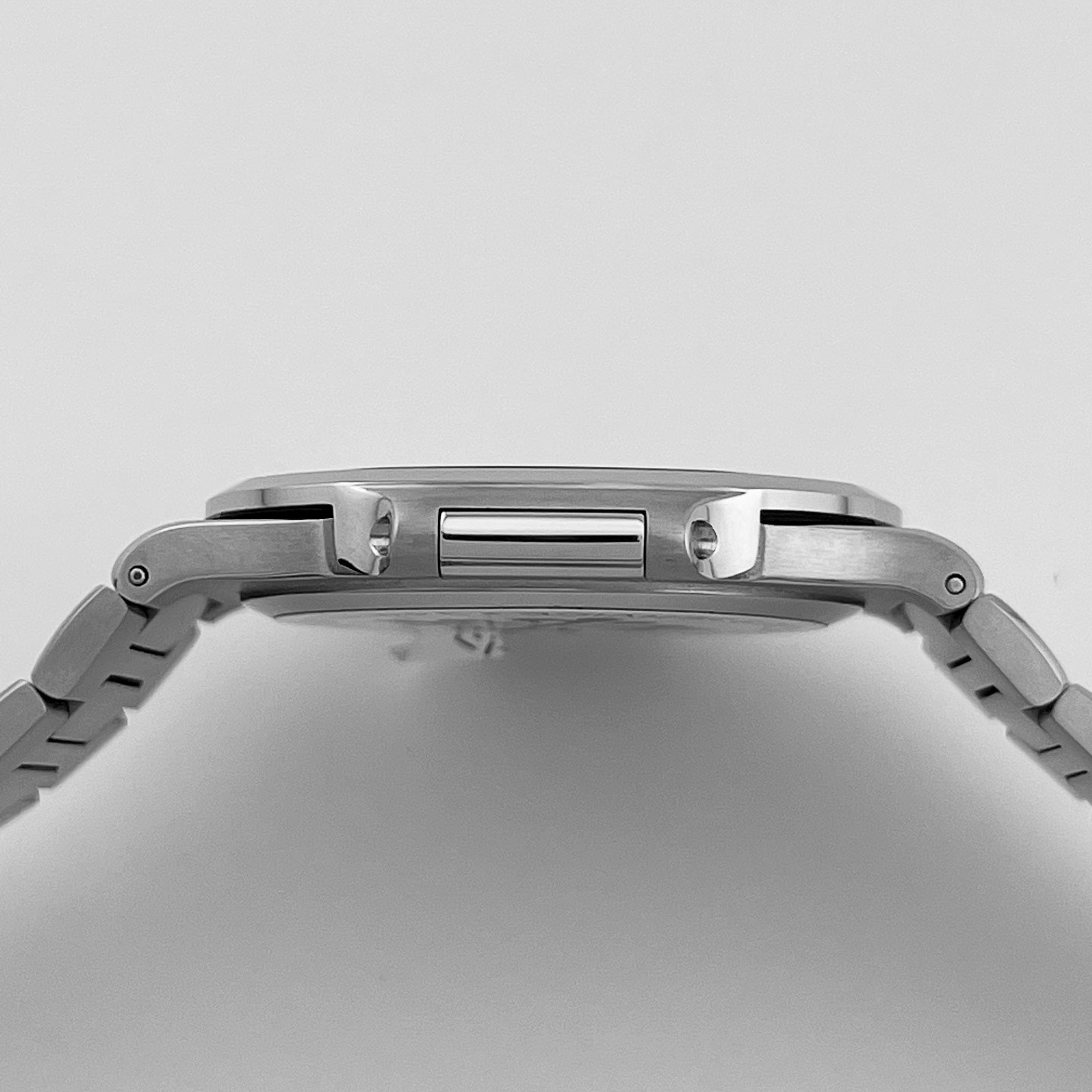

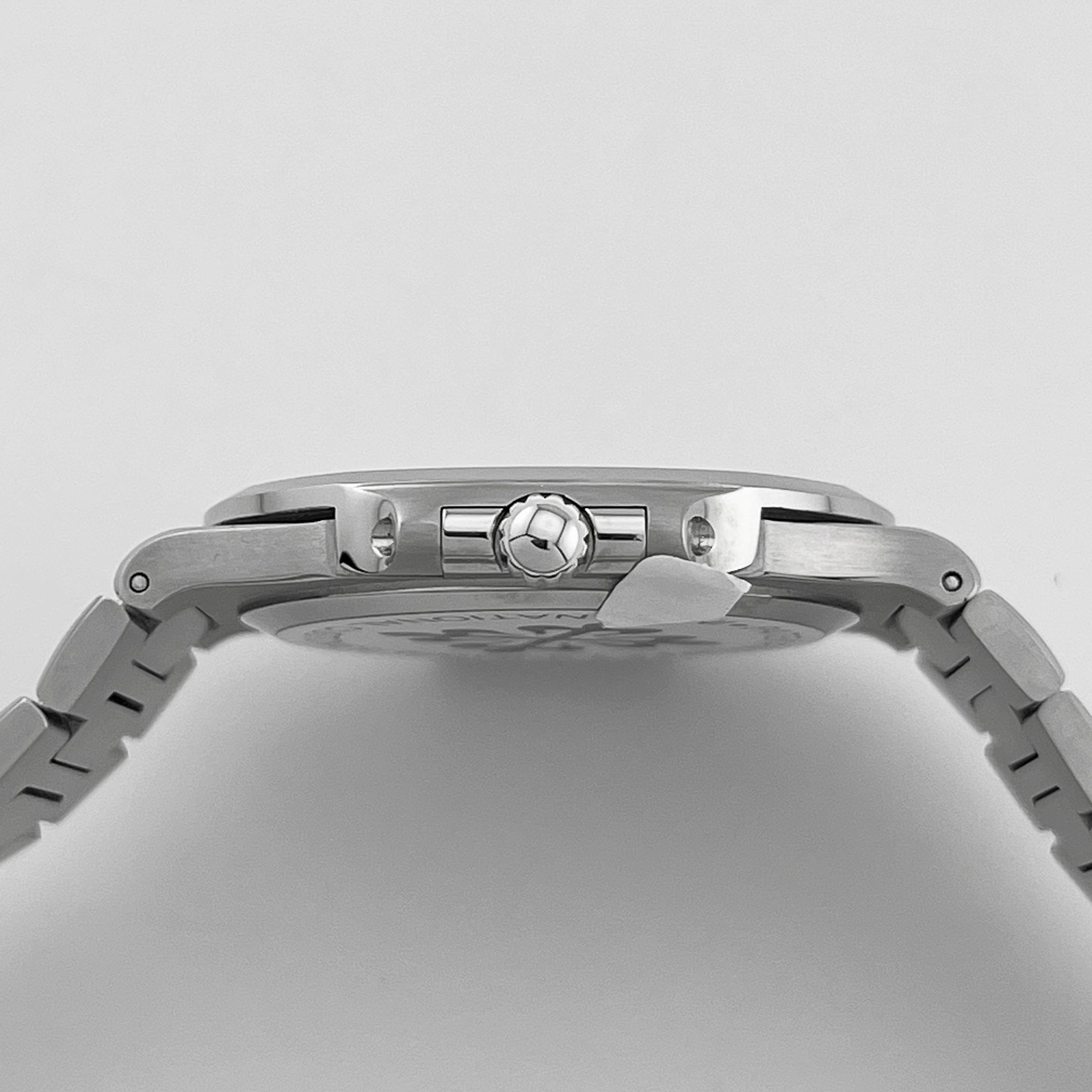

The 3700/11 case measures 42mm across the widest point (including the distinctive "ears" protruding at 3 and 9 o'clock), with actual bezel diameter closer to 40mm. Case thickness measures 7.6-7.8mm depending on measurement methodology—this represents extraordinary thinness for 1970s automatic watch, achieved through Caliber 28-255C's 3.05mm movement height and the monobloc case construction eliminating traditional screw-down caseback. The case fabricates as single piece with movement loaded through dial opening—the caseback integrates permanently with case middle, secured via internal snap ring rather than threaded connection. This construction required specialized service procedures (movement extraction through dial side) but allowed reduced case height and improved water resistance to 120 meters, exceptional for era lacking screw-down crown or specialized gasket systems.

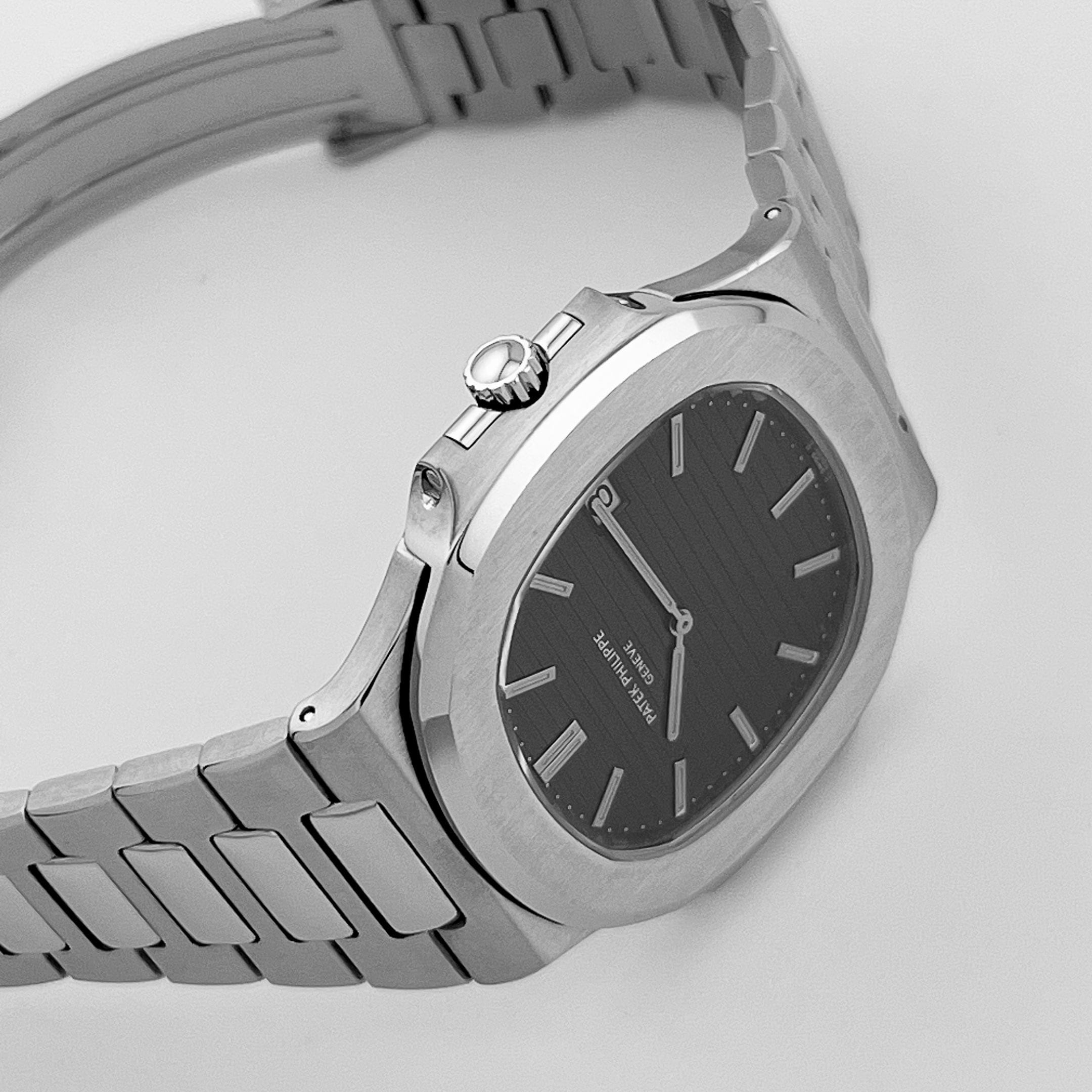

The octagonal bezel attaches via two screws positioned at upper and lower "ears"—visible Phillips head screws that became signature Nautilus design element. The bezel profile combines brushed flat surfaces with polished beveled edges, creating subtle light play across the octagonal geometry. The case finishing employs horizontal brushing on all flat surfaces (bezel top, case flanks, bracelet center links) with mirror polishing restricted to beveled edges and transitions—this mixed finishing pattern requires extensive hand-work, as achieving clean transitions between brushed and polished surfaces on integrated case/bracelet architecture demands skilled polisher preventing cross-contamination between surface treatments.

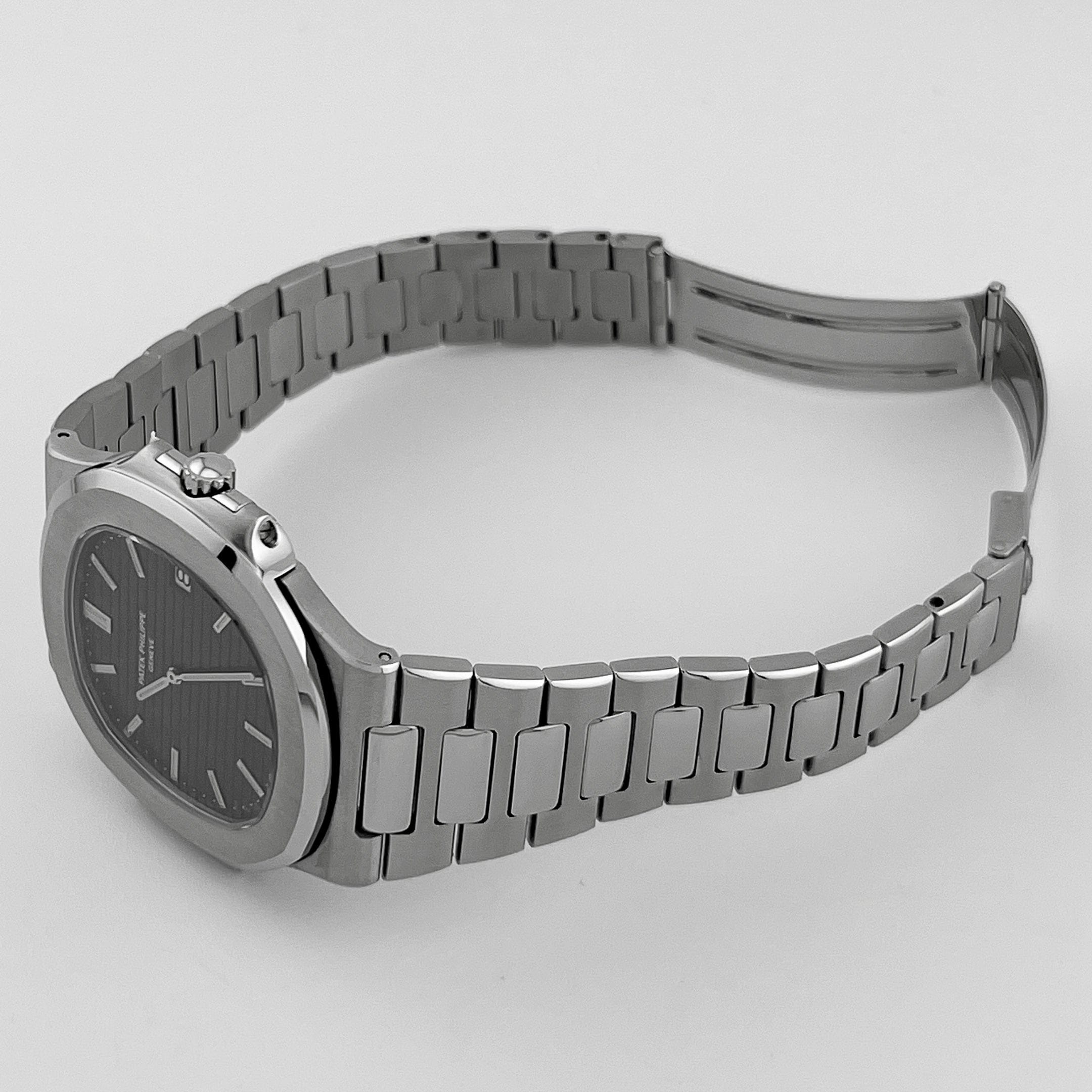

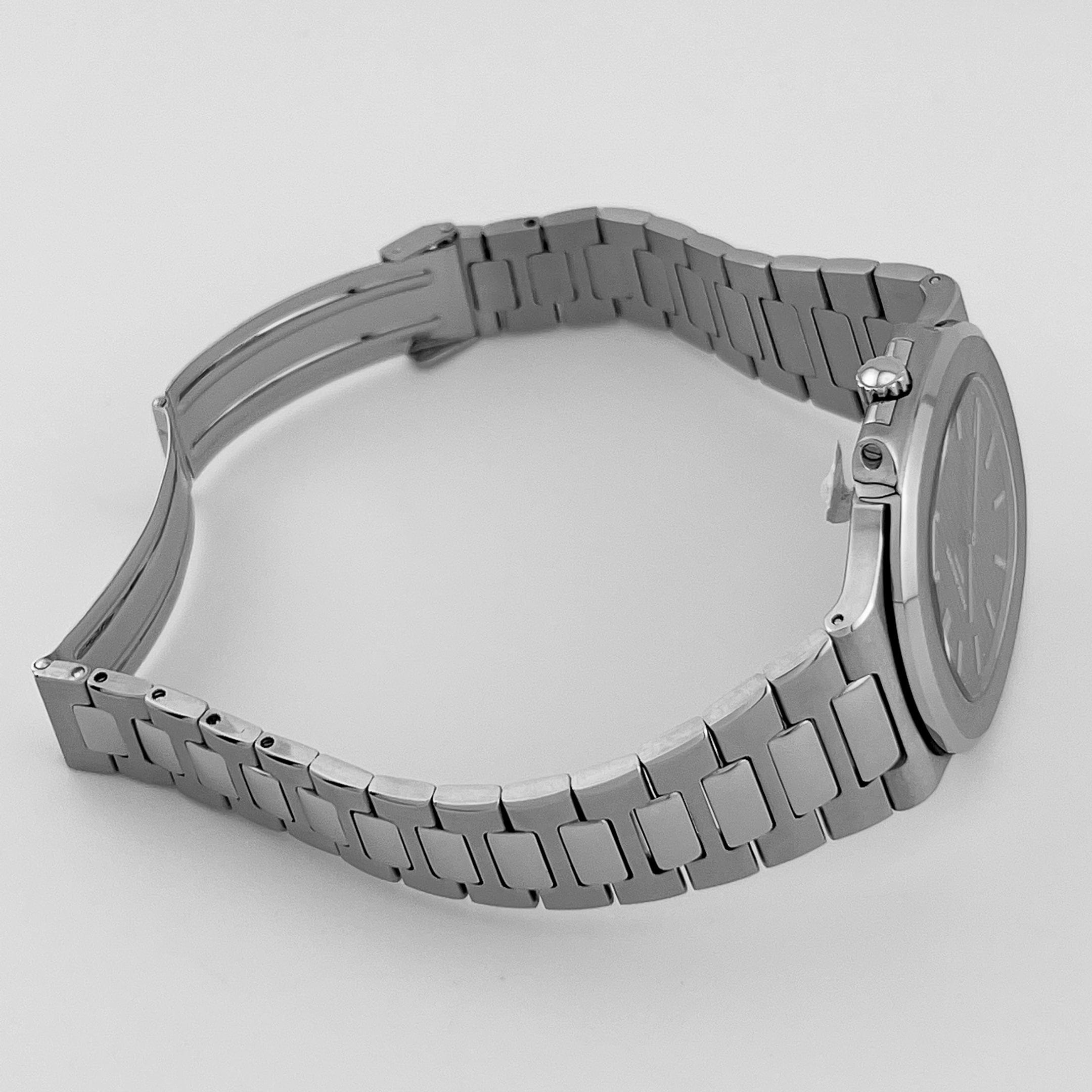

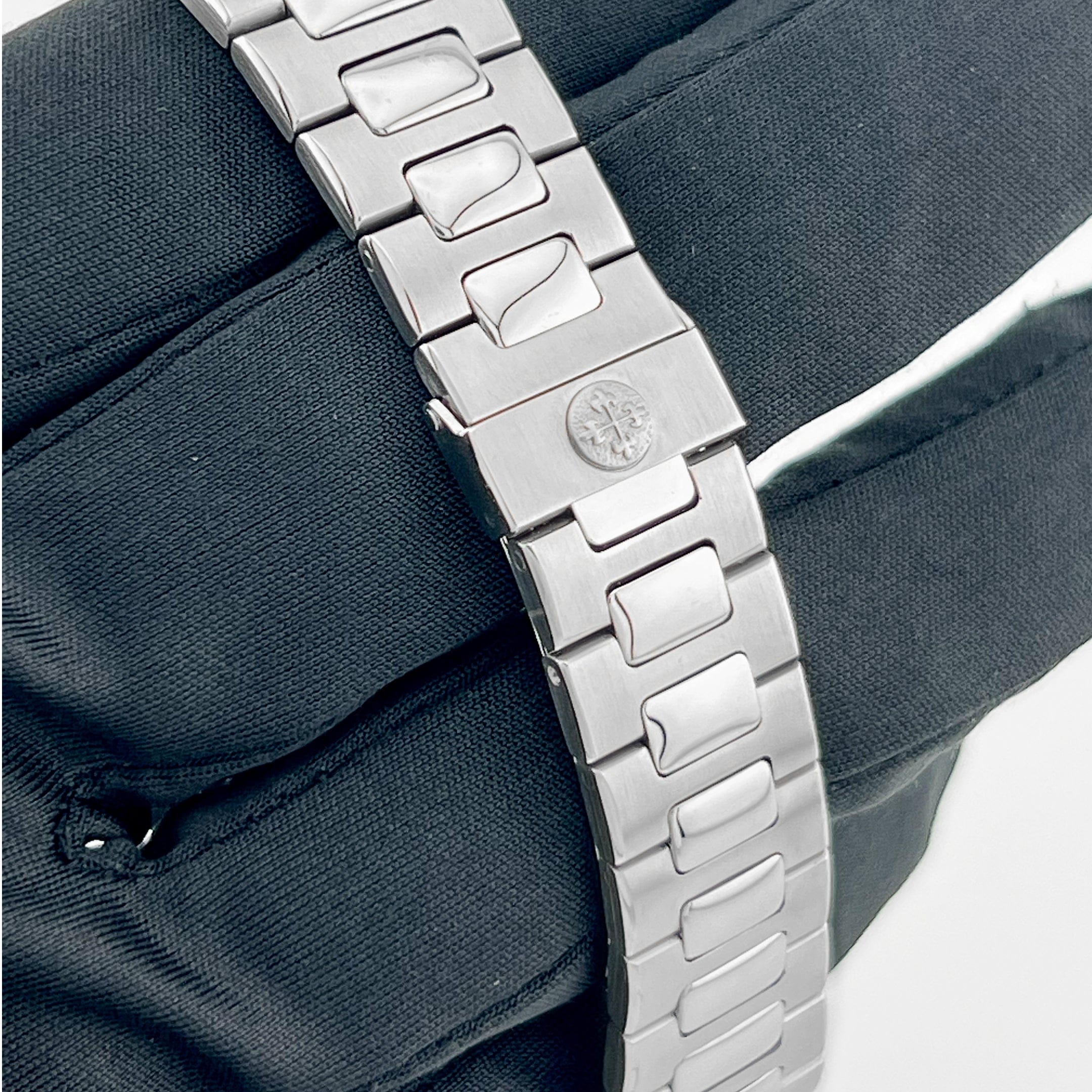

The integrated bracelet represents Genta's most significant contribution beyond case design—the seamless flow from case through lugs into bracelet links creates unified visual statement impossible with traditional watch head accepting interchangeable straps. The 3700/11 bracelet employs three-link configuration: polished center links flanked by brushed outer links, tapering from 16mm at case attachment to 14mm at clasp. Gay Frères manufactured the bracelets during early production (through approximately 1982), with Patek transitioning to internal bracelet production in later 3700/11 examples. The clasp employs simple folding deployant secured by push-button release—functional but nowhere approaching the refined hidden deployants found on modern Nautilus references.

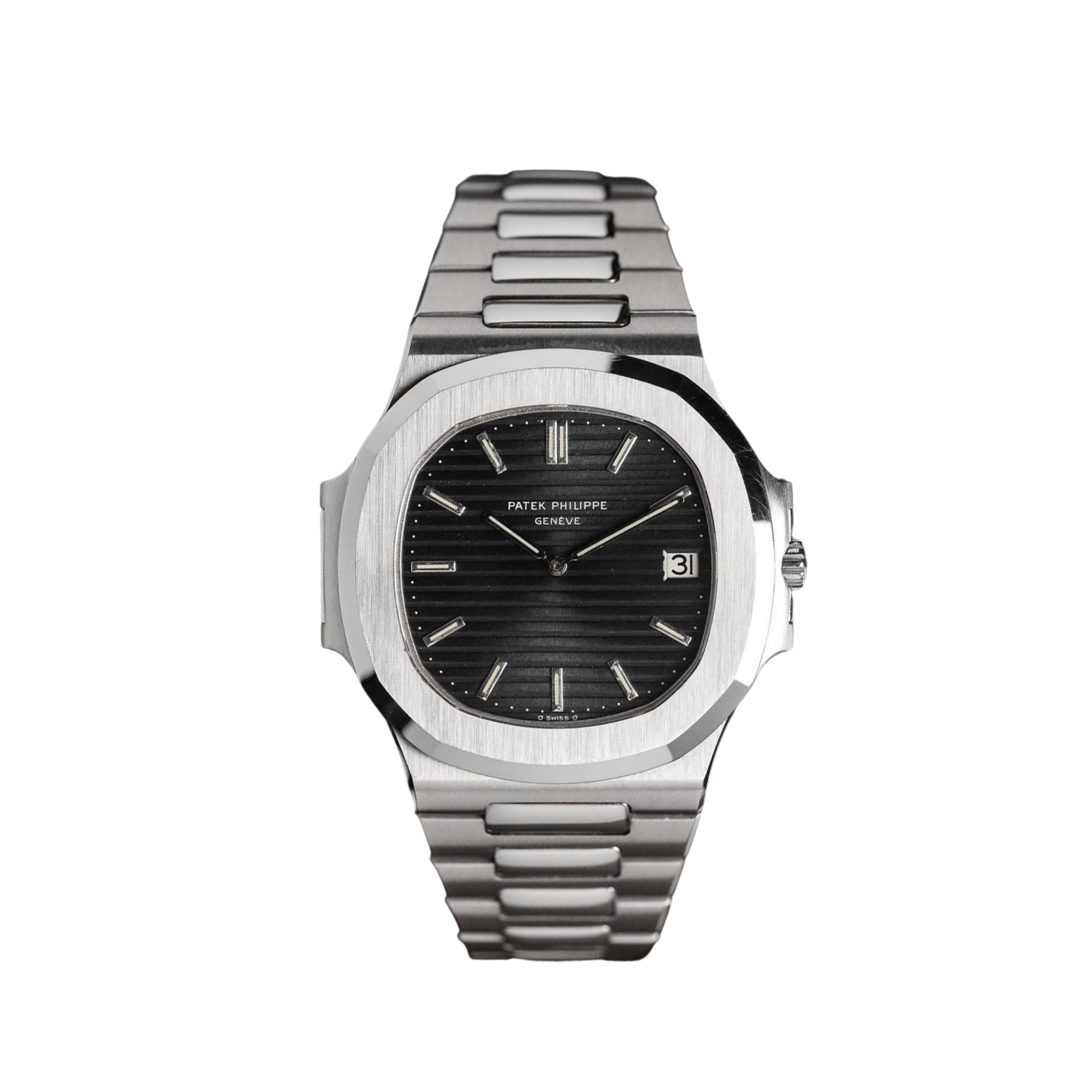

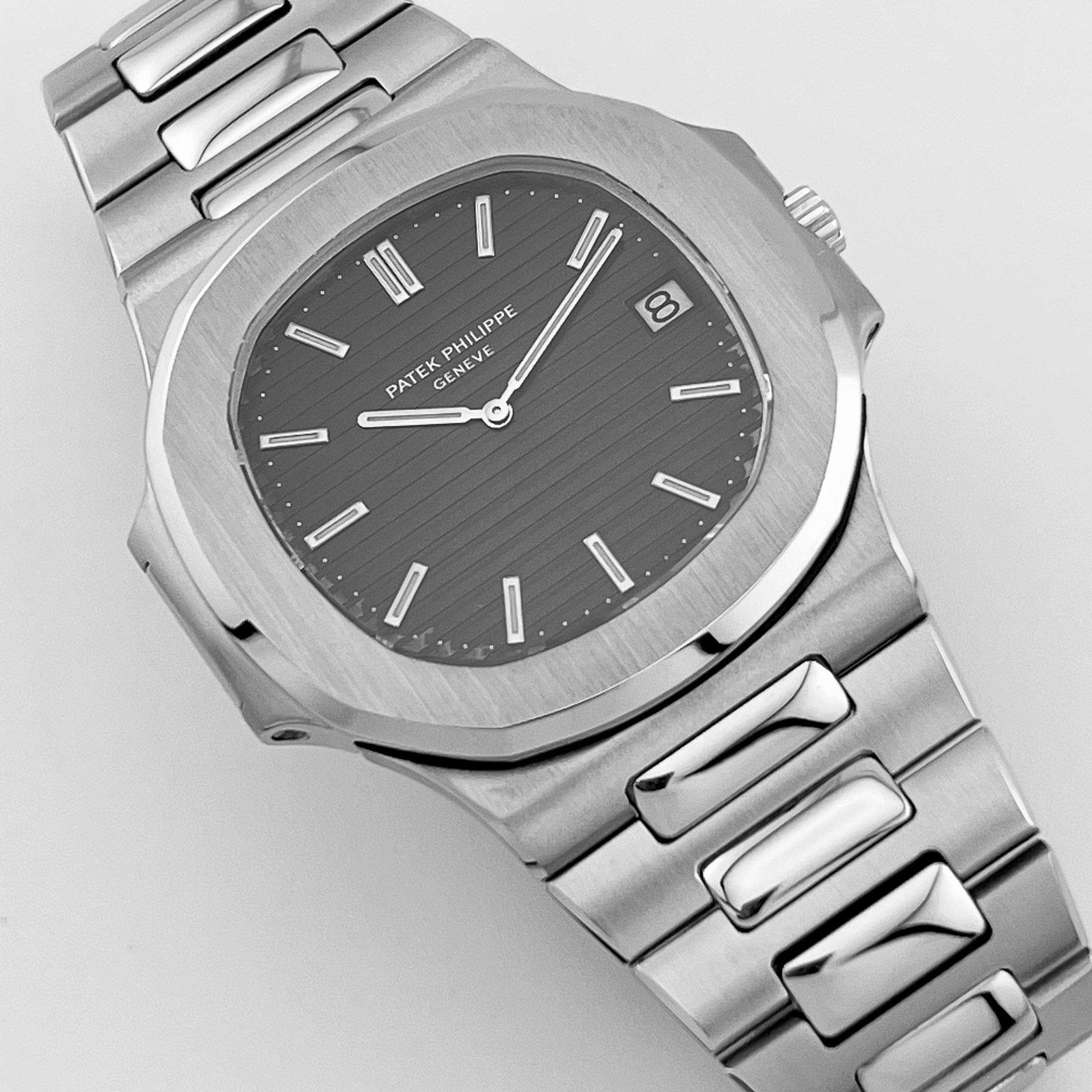

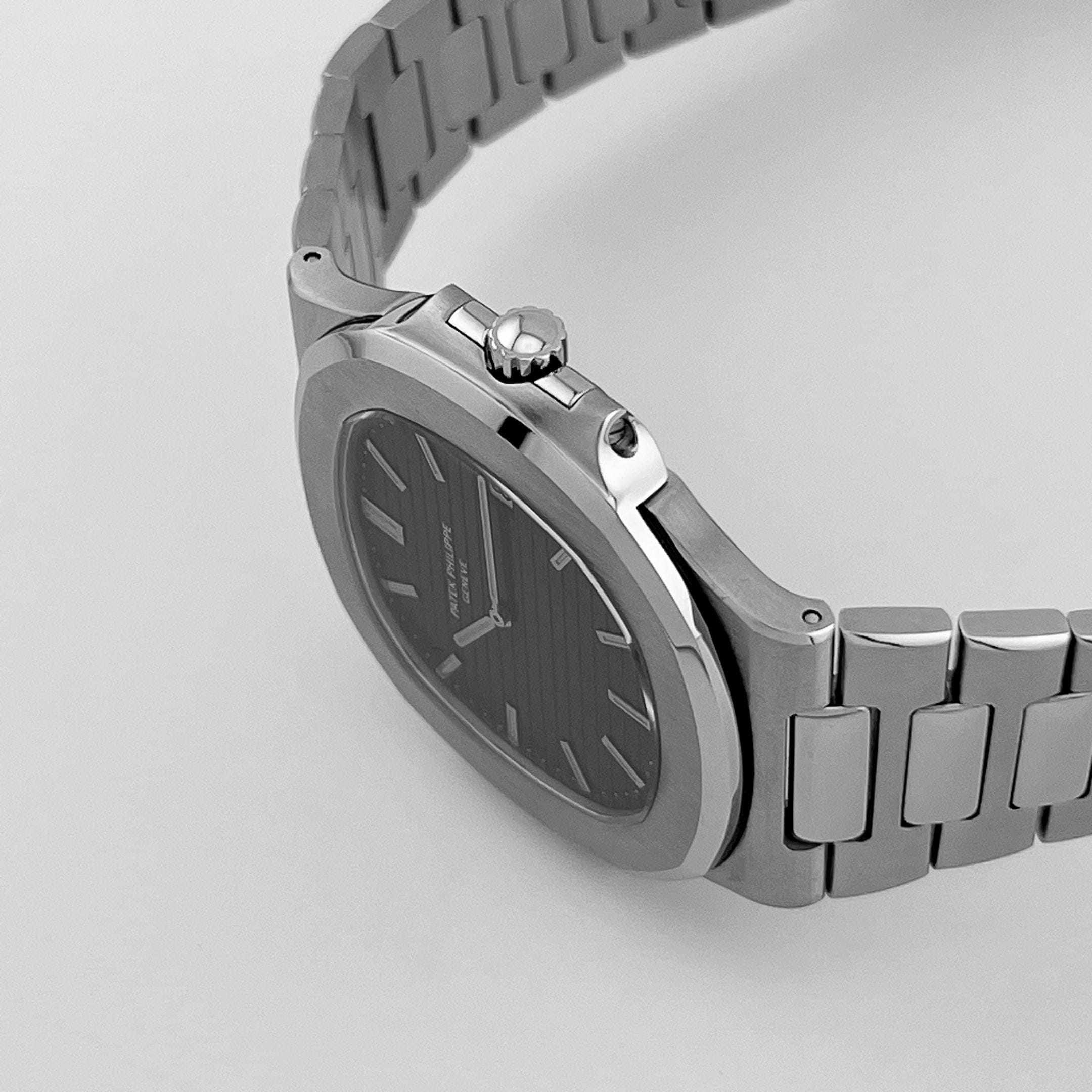

The black dial executes Patek's signature horizontal ribbed texture—individual grooves machined into the dial surface creating subtle dimensionality and light refraction. The ridges run horizontally across the dial plane, with spacing and depth creating visual rhythm without overwhelming legibility. Achieving consistent ridge depth and spacing across the dial surface required skilled craftsmanship, as uneven machining creates visible irregularities.
Applied white gold baton hour markers position at all twelve positions, with luminous tritium fill providing low-light legibility. The markers employ simple rectangular geometry—no elaborate faceting or decorative treatments, just clean bars radiating from dial center. The hands fabricate in white gold matching the hour markers, filled with matching tritium compound. Tritium's radioactive luminescence degraded over decades, with most surviving examples showing faded cream or tan lume rather than original bright green glow. The presence of original tritium (versus modern SuperLuminova applied during service) provides authentication point for originality-focused collectors, though aged tritium offers minimal practical illumination.
The date window cuts into dial at 3 o'clock, employing white date disc with black numerals—the high contrast pairing ensures legibility against the black dial background. The window opening integrates into dial without surrounding frame or border, maintaining clean aesthetic. Dial printing includes "PATEK PHILIPPE GENEVE" in two lines below 12 o'clock, and "SWISS" at 6 o'clock. Early 3700/1 examples included small painted minute track around dial perimeter; later production including most 3700/11 references eliminated this feature, relying on applied hour markers for time indication.
Patek Philippe designated the movement Caliber 28-255C, based directly on Jaeger-LeCoultre's legendary Caliber 920—the same ultra-thin automatic ébauche powering the Audemars Piguet Royal Oak (designated Cal. 2121) and Vacheron Constantin 222/Overseas (designated Cal. 1121/1120). This represents rare instance of all three "Holy Trinity" manufactures employing identical movement architecture simultaneously, though each house finished and regulated movements according to internal standards.
The Caliber 920 measured 28mm diameter by 3.05mm thickness—thinnest automatic movement available when introduced in 1967, achieved through peripheral rotor winding system rather than traditional central rotor. The peripheral rotor—a 21k gold ring traveling around movement perimeter on ball bearings—allowed reduced height by eliminating central rotor's vertical clearance requirements. The movement operated at 19,800 vibrations per hour (2.75 Hz), employed 36 jewels, and delivered approximately 40-42 hours power reserve from single barrel.
Patek Philippe finished the JLC ébauche to manufacture specifications: Geneva striping on bridges, perlage on base plate, polished bevels, and Gyromax balance wheel—Patek's proprietary free-sprung balance system employing adjustable weights on balance rim for precision regulation without traditional regulator index. The movement received full Patek Philippe Geneva Seal certification despite external ébauche origins, as Patek's finishing work and quality control met Seal standards regardless of initial movement source.
